4inch Sapphire Wafer C-Plane Single or Double Side Polished Al2O3 Single Crystal
4inch Dia100mm A plane Single Crystal Sapphire Wafer
2inch Dia50mm C axis Single Crystal Sapphire Wafer Sapphire Substrates
8inch Dia 159mm Single Crystal Sapphire Wafer For Epi - Ready Carrier
4inch/ 5inch/ 6inch/ 6.125inch/8inch c-plane R-axis (1-102) (10-10) sapphire wafer,dia200mm sapphire substrates ,2-6inch C-axis double side polished sapphire wafer for led epi-ready,sapphire substrates, Al2O3 crystal optical lens, Double Side Polished SSP Surface 8" Sapphire Carrier Wafer C-plane(0001) with best price,8inch Dia 159mm Single Crystal Sapphire Wafer For Epi - Ready Carrier
Why choose Single Crystal Sapphire products?
Single crystal sapphire possesses excellent optical, physical and chemical properties. It is the hardest oxide crystals, and remains high strength and chemical resistance at high temperatures. It also features a wide transmission wavelength range, great electrical insulation, and good thermal conductivity at low
temperatures.
Specifications of Sapphire Wafer, 4 inch, C-plane (0001), Prime Grade
| Material | High Purity, >99.99%, single crystal Al2O3 |
| Dimension | 100.0 mm +/- 0.1 mm |
| Thickness | 650 um +/- 25 um (SSP) , 600 um +/- 25 um (DSP) |
| Lattice Parameter | a=4.785 A, c=12.991 A |
| Density | 3.98 g/cm3 |
| Orientation | C plane sapphire (0001) off M plane 0.2+/- 0.1 degree, R-plane (1-102), A-plane (11-20), M-plane (10-10) are available. |
| Primary flat orientation | A-plane +/- 0.2 degree |
| Total Thickness Variation (TTV) | <20um |
| Bow | <20um |
| Warp | <20um |
| Thermal Expansion Coefficient | 6.66 x 10-6 / °C parallel to C axis, 5 x 10-6 /°C perpendicular to C axis |
| Dielectric Strength | 4.8 x 105 V/cm |
| Dielectric Constant | 11.5 (1 MHz) along C axis, 9.3 (1 MHz) perpendicular to C axis |
| Dielectric Loss Tangent (a.k.a. dissipation factor) | less than 1 x 10-4 |
| Thermal Conductivity | Thermal Conductivity |
Electrical Properties of Sapphire
Resistivity, Ohm x cm at 200-500 °C: 1011- 1016
Dielectric constant: 10.0
Dielectric strength, V/cm: 4 x 105
Loss tangent: 1 x 10-4

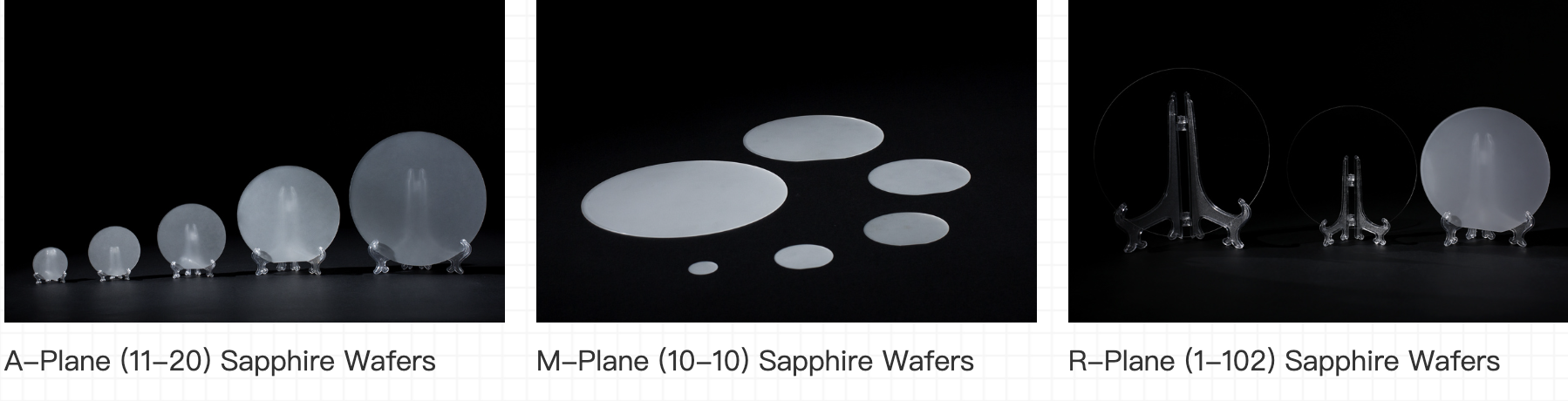

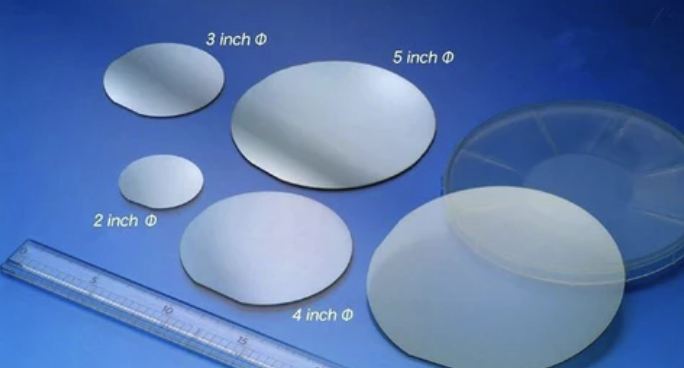

Product display

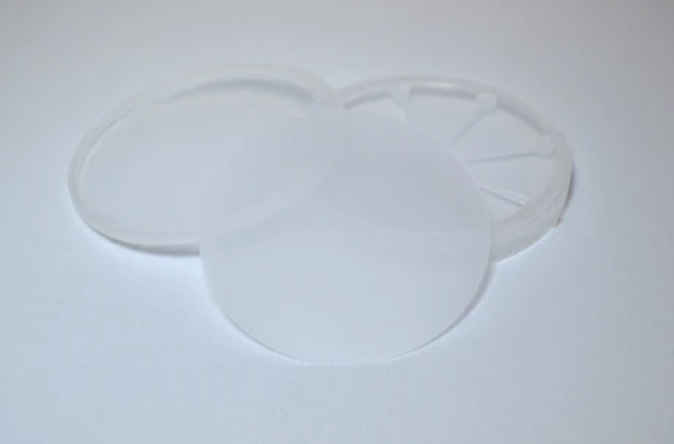

Packing of sapphire wafers
Related products
FAQ:
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 10pcs.
(2) For customized products, the MOQ is 25pcs up.
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) If you have your own express account, it's great.If not,we could help you ship them.
Freight is in accordance with the actual settlement.
Q: What's the delivery time?
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 or 3 weeks after you place the order.
Q: Do you have standard products?
A: Our standard products in stock.as like 4inch 0.65mm,0.5mm polished wafer.
Q: How to pay?
A:50％deposit, left before delivery T/T,
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical
components based on your needs.
