Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type

Name: Sapphire Optics Chips Sapphire Glass Lens Single Crystal M Plane Type
Brand: zmsh
Price: 1 USD

Wholesale Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type from china suppliers

Brand Name : zmsh

Model Number : m-plane 2inch

Place of Origin : china

MOQ : 25pcs

Price : by case

Supply Ability : 1000pcs/months

Delivery Time : 10-20days

Packaging Details : Vacuum-sealed containers with nitrogen backfill in a class 100 environment

material : 99.999％ Al2O3

industry : led，optical glass，epi-ready wafer

application : semicondutor wafer, led chip, optical glass window, electronic ceramics

color : white or red or blue

vision light transmissivity : 85％

advantagement : high hardness9.0，wear resistance,

type : single crystal M-plane

Contact Now

M-axis sapphire wafer for epi-ready test,sapphire optical chips, 2-6inch M-plane,A-axis sapphire epi-ready,2inch sapphire substrates for led

Custom LED Substrate Material Optical Sapphire Window and Sapphire Glass

with crystal orientation A,C,M,R-plane.

Sapphire glass are ideal for applications where high pressure, vacuum, or corrosive atmospheres are

a consideration.Sapphire, a single crystal form of Al2O3, is resistant to attack by strong acids due to

its high dielectric constant. It has high compressive strength and a high melting point. It is also resistant

to UV radiation darkening.

Customizing is available.By using sapphire cutting and machining facilities, sapphire wafers in different orientations, thicknesses and machining accuracies are available. At present, the products mainly are 2″,4″and 6″ sapphire wafer.

2inch M-axis specifications sapphire wafer

Material: Single crystal Al2O3 99.999％
Orientation: M-axis 0.2
Diameter:50.8.±0.2mm
Thickness :430±15um or 330±15um
Primary flat:16±1mm
OF Orientation flat: OFF C axis±0.1°C-plane(0001)
Frontside Surface Roughness:Ra＜0.2nm
Backside Surface Roughness: 0.8~1.2um
( Or double side polished, both side Ra＜0.2nm)
TTV:＜10um
BOW:-10~0um
WARP:＜10um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Cleanliness :Free visible contamination
If needing, 3-6inch M-axis and other orirentations wafers also can be provided.

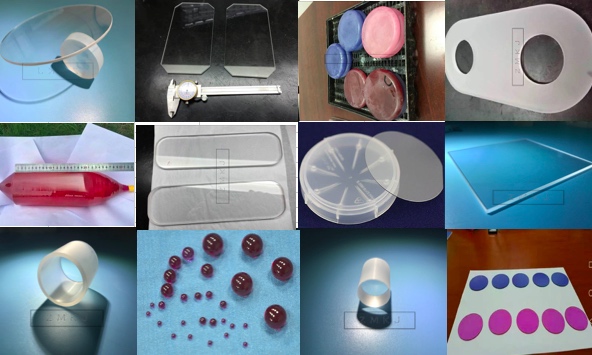

Sapphire Sample for Application

Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type

Other semiconductor materials substtares can be provided.aslike sic,GaN,GaAs, LiTaO3,MgO,AlN.

FAQ:

Q: Do you have standard products?

A: Our standard products in stock. as like 2inch 0.43mm 1sp or 2sp thickness each orientation in stock.

other size please contect with us at your time.

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) it is fine If you have your own express account ,If not,we could help you ship them and

Freight is in accordance with the actual settlement by FOB.

Q: How to pay?

A: T/T in advance.

Q: What's the delivery time?

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 -4 weeks after you order contact.

Q: What's your MOQ?

A: (1) For inventory, the MOQ is 25pcs for wafers because in 25pcs casttle box.

(2) For customized products, the MOQ is 25pcs up.

Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type

>> Packaging – Logistcs
we concerns each details of the package , cleaning, anti-static , shock treatment . According to the quantity and shape of the product , we will take a different packaging process!

Sapphire Optics Chips / Sapphire Glass Lens Single Crystal M - Plane Type
